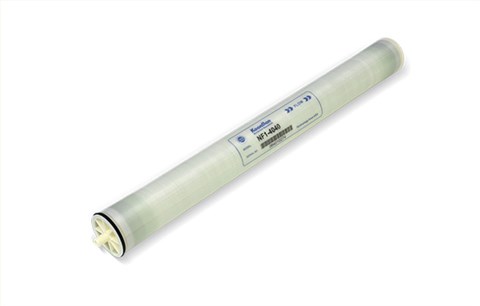

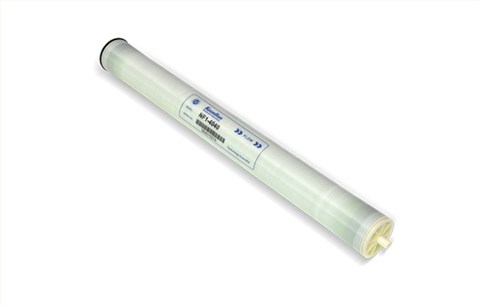

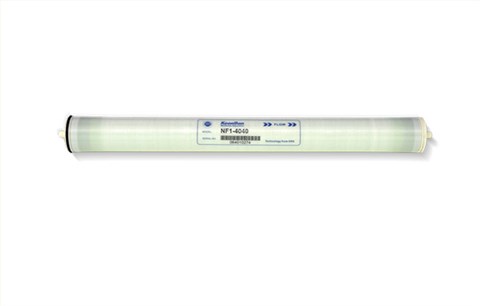

High Rejection Nanofiltration Membrane Element

Product Introduction

It has the selective desalination mechanism for removal of high polyvalent ions and partial maintaining of monovalent ions with health benefits. Moreover, the equipment operating cost can be reduced effectively with the advantage of low working pressure.

Product details

Usage

It is applicable to the desalination of direct drinking water, spring water, boiler water, also desalination and decolorization of wastewater with high salt concentration.

Specifications & Parameters

Model	Active Membrane Area ft²(m²)	Permeate Flow GPD(m³/d)	Stable Rejection Rate (%)	Solution Type
NF1-4040	85(7.9)	2200(8.3)	50-70	NaCl
NF1-4040	85(7.9)	1800(6.8)	>98	MgSO₄

Standard Test Condition

Concentration of Solution	Temperature（℃）	pH Value	Operating Pressure psi(MPa)	Recovery Rate（%）
500mg/L NaCl	25	7.5-8	70(0.48)	15
2000mg/L MgSO₄	25	7.5-8	70(0.48)	15

Notes: The permeate flow of single membrane element may vary with in ±15%.

Operating Limits and Conditions of Membrane Element:

Max.Working Pressure	600 psi(4.14MPa)
Max. FeedWater Temperature	45 ℃
Max. FeedWaterSDI₁₅	5.0
Max. Feed Water Flow	3.6m³/h
Free Chlorine Concentration of FeedWater	0.1mg/L
pH Range of FeedWaterDuring Continuous Operation	3-10
pH Range of FeedWaterDuring Chemical Cleaning	1-13
Max. Pressure Drop of Single Membrane Element	15psi(0.1Mpa)
