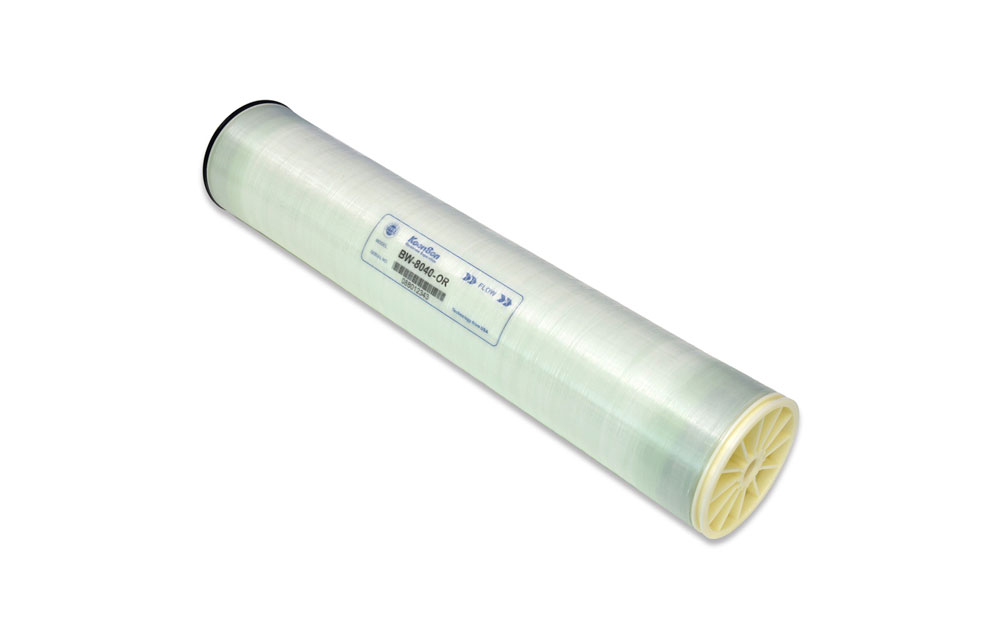

Brackish Water RO Membrane Element-BW-8040-OR

Product Categary:
Industrial Membrane Element
Main Feature:
High rejection rate, large flux and excellent anti-fouling property.
E-mail:sales@keensen.com
Enquriy
Usage

It is applicable to the municipal desalination processing for brackish and industrial wastewater.

Specifications & Parameters
Model Active Membrane Area ft2(m2) Permeate Flow GPD(T/D) Stable Rejection Rate (%)
BW-8040-OR 400(37.2) 9000(34.1) 99.5
Chlorine resistant ability :
working in 12.5hours under 2000ppm
NaClO,rejection > 98
Standard Test Condition
Concentration of Solution Temperature(℃) pH Value Operating Pressure psi(MPa) Recovery Rate(%)
2000ppm(NaCl)
2000ppm(NaClO)
25 7.5-8 225(1.55) 15

Notes: The permeate flow of single membrane element may vary with in ±15%.

Operating Limits and Conditions of Membrane Element:

Max.Working Pressure 600 psi(4.14MPa)
Max. FeedWater Temperature 45℃
Max. Feed Water Flow 17.0m3/h
Max. FeedWaterSDI15 5.0
Free Chlorine Concentration of Feed Water 0.1mg/L
pH Range of Feed Water During Continuous Operation 2-11
pH Range of Feed Water During Chemical Cleaning 1-13
Max. Pressure Drop of Single Membrane Element 15psi(0.1Mpa)
