1.Project Brief

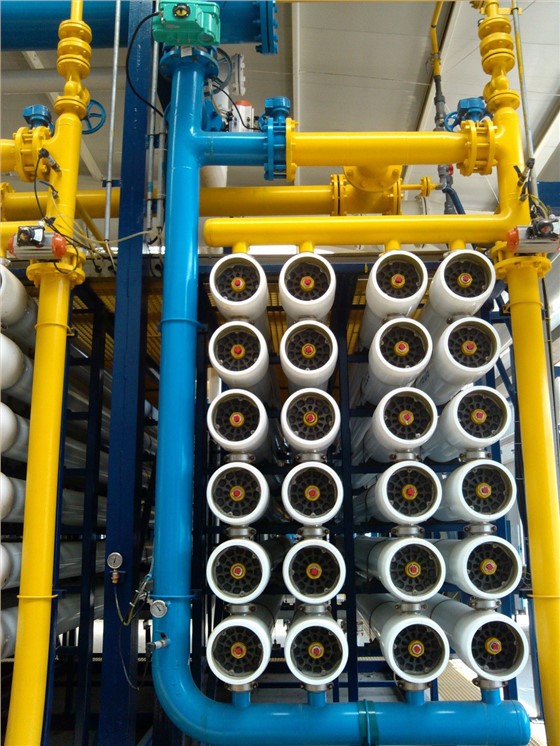

This project is to desalinate seawater through reverse osmosis process. The RO permeate water is treated by EDI as boiler feedwater. In 2019,168 seawater elements were used in this project. The RO system has been installed and operated for one year, and all effluent indexes achieved the expected results.
2.Technological Process
Raw water—Cooling tower—Coagulation sedimentation—UF—Cartrige filter—RO
3.System Quick Facts
| Element Model | Permeate Flux | Recovery | Operating Pressure | Permeate Flow | Pressure Vessel Array |
| SW-8040MR | 16LMH | 40% | 5-6MPa | 100m³/h | 24*7 |
4.System Operation Data
| Date | Operating Pressure | Permeate Flow | Recovery | Salt Rejection | Temperature |
| 2019.3 | 56bar | 100m³/h | 40% | 98.4% | 28℃ |
